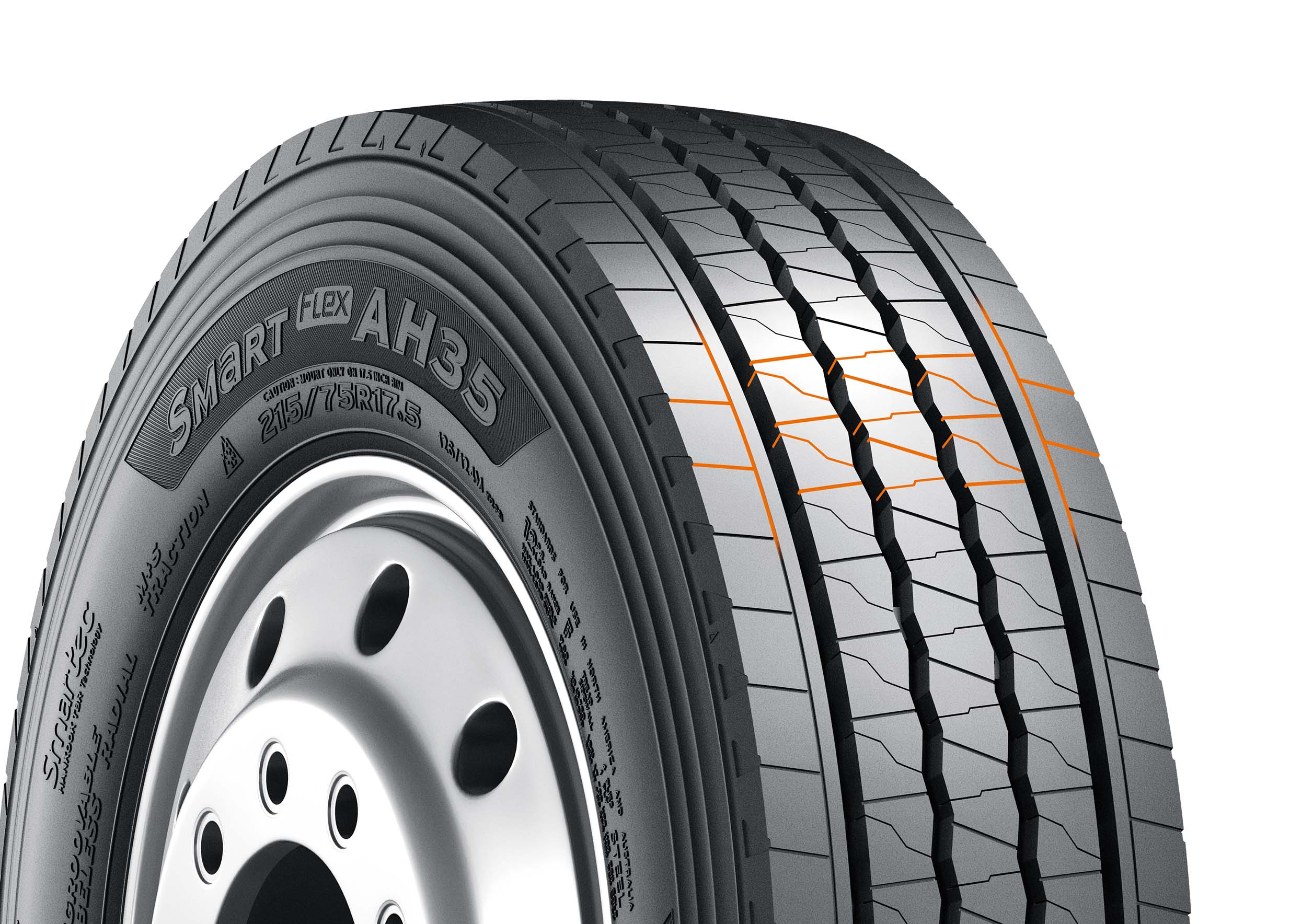

Smart Flex AH35

All-season steer axle tire for variable road conditions

M+S 3PMSF

Application
  • Regional Haul
Truck Recommended
Where to Buy
Where to Buy 0
0Recently viewed products

Special tread design and multi 3-Dimensional Sipes provide high
mileage and enhanced traction performance in various road conditions.

Hankook Tire & Technology-Tires-Smart--Smart Flex-AH35-Special tread design and multi 3-Dimensional Sipes provide high mileage and enhanced traction performance in various road conditions

Pattern design

Wide tread width

Wide tread width offers high pattern volume which results into a high mileage performance.

  • Conventional
  • AH35

Multi 3-Dimensional Sipes

Multi 3-Dimensional Sipes provide excellent traction leading to an enhanced driving performancce. The rib's reliable stiffness results in significant fuel savings.

Pattern design

Special tread pattern design with semi-sipes

Special tread pattern design with semi-sipes ensures even wear throughout the tyre's lifespan.

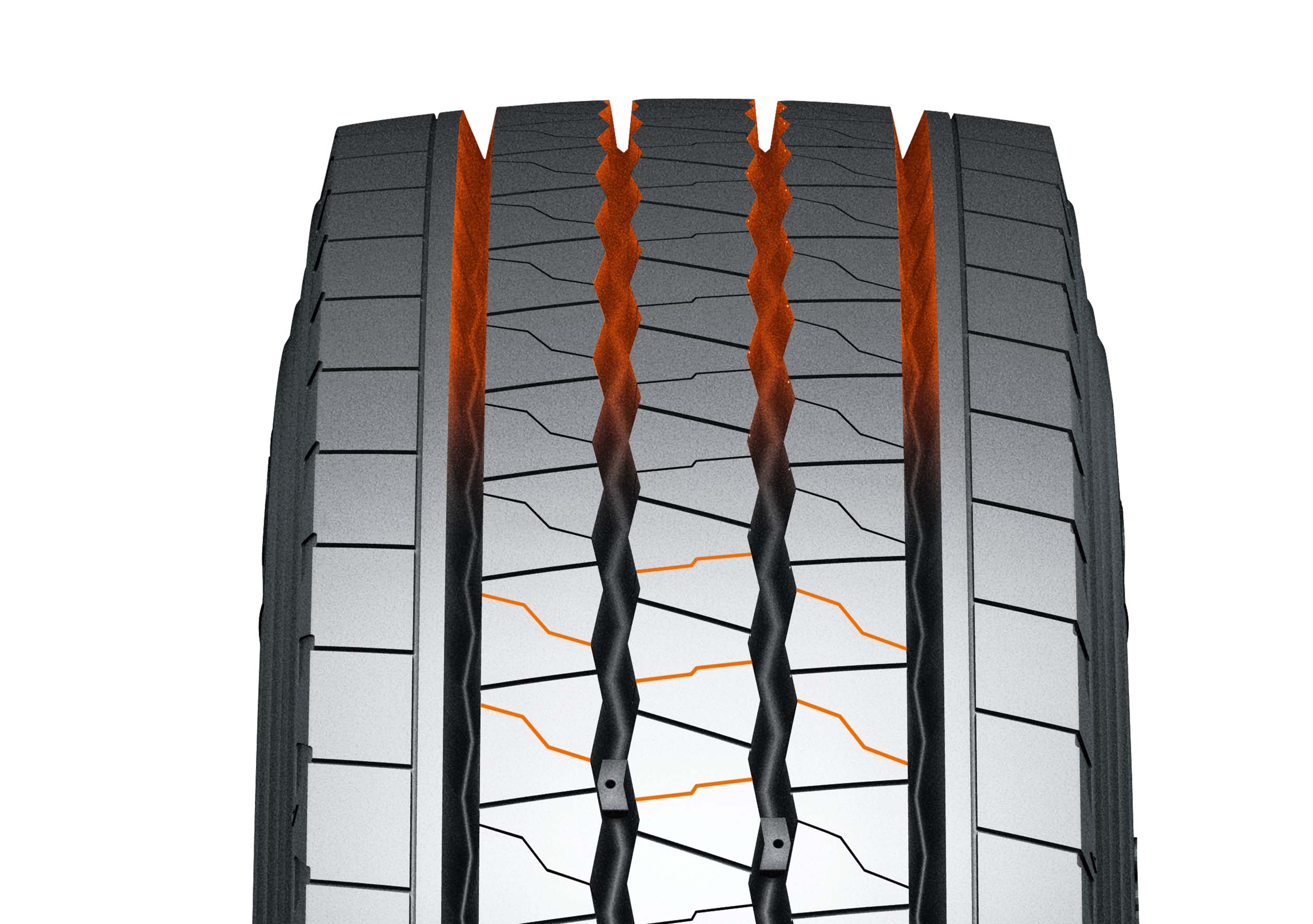

4 wavy and straight grooves

A combination of 4 wavy and straight grooves provide outstanding traction and drainage performance on long and regional haul multi-applications.

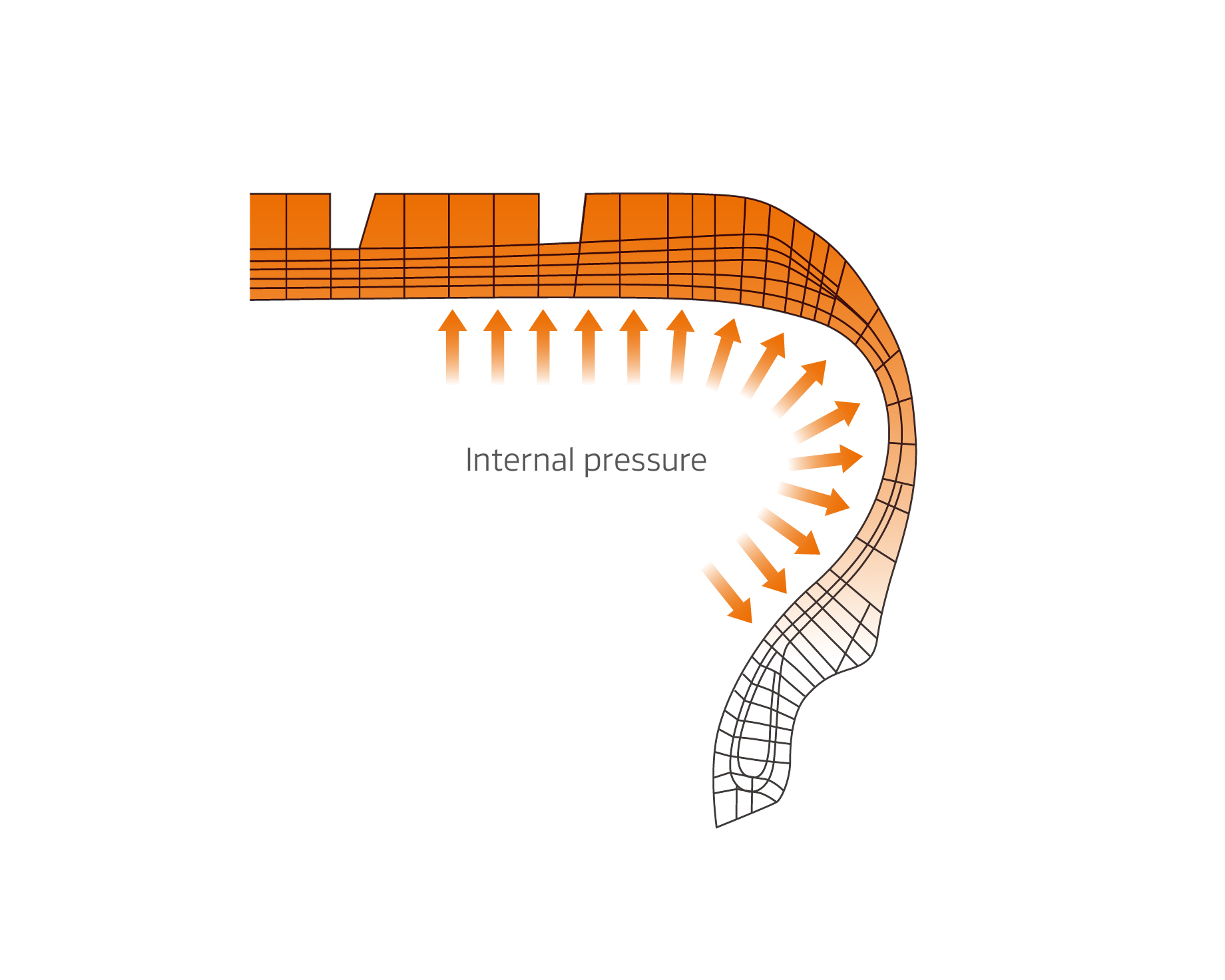

Stiffness Control Contour Theory Technology
(SCCT Technology)

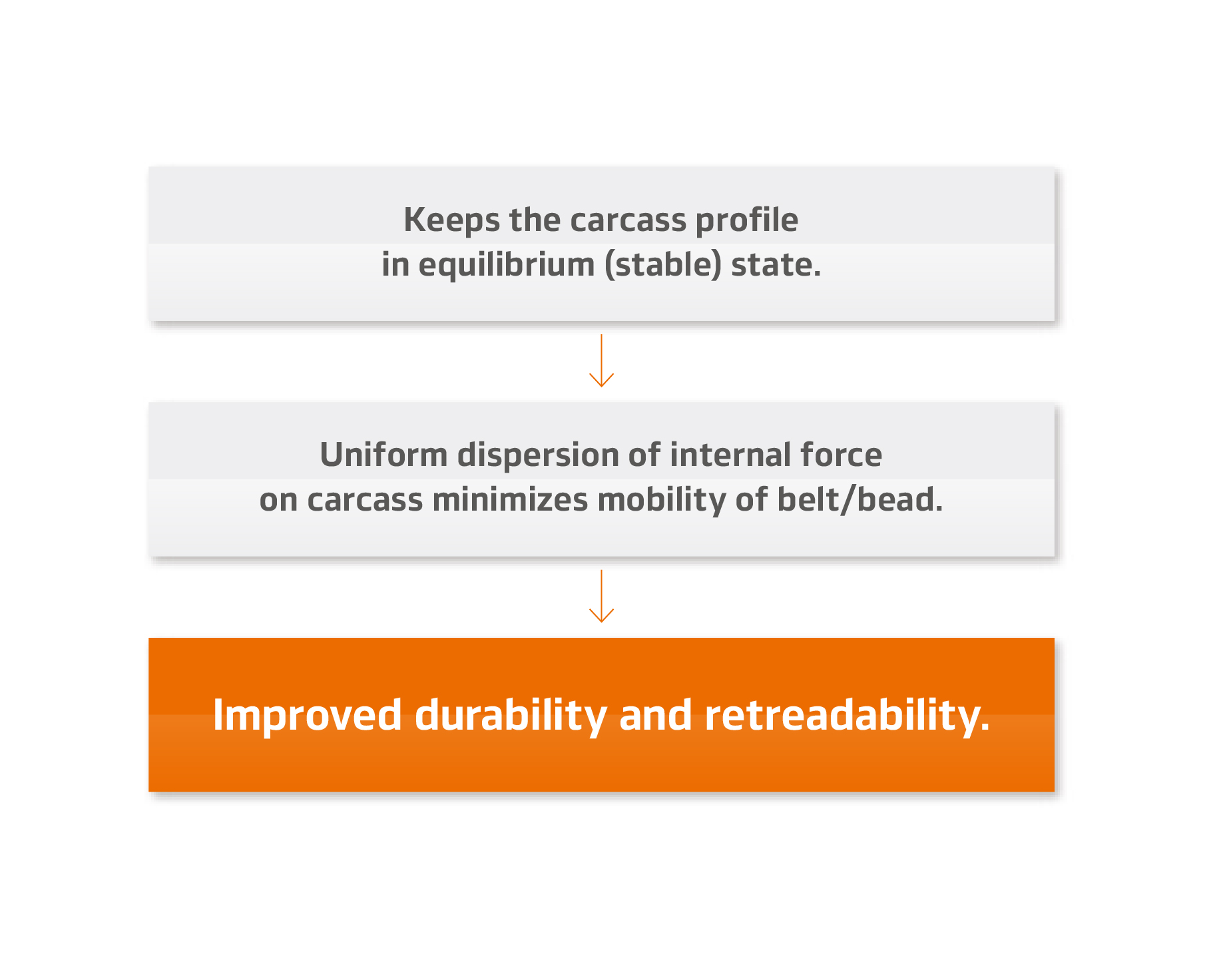

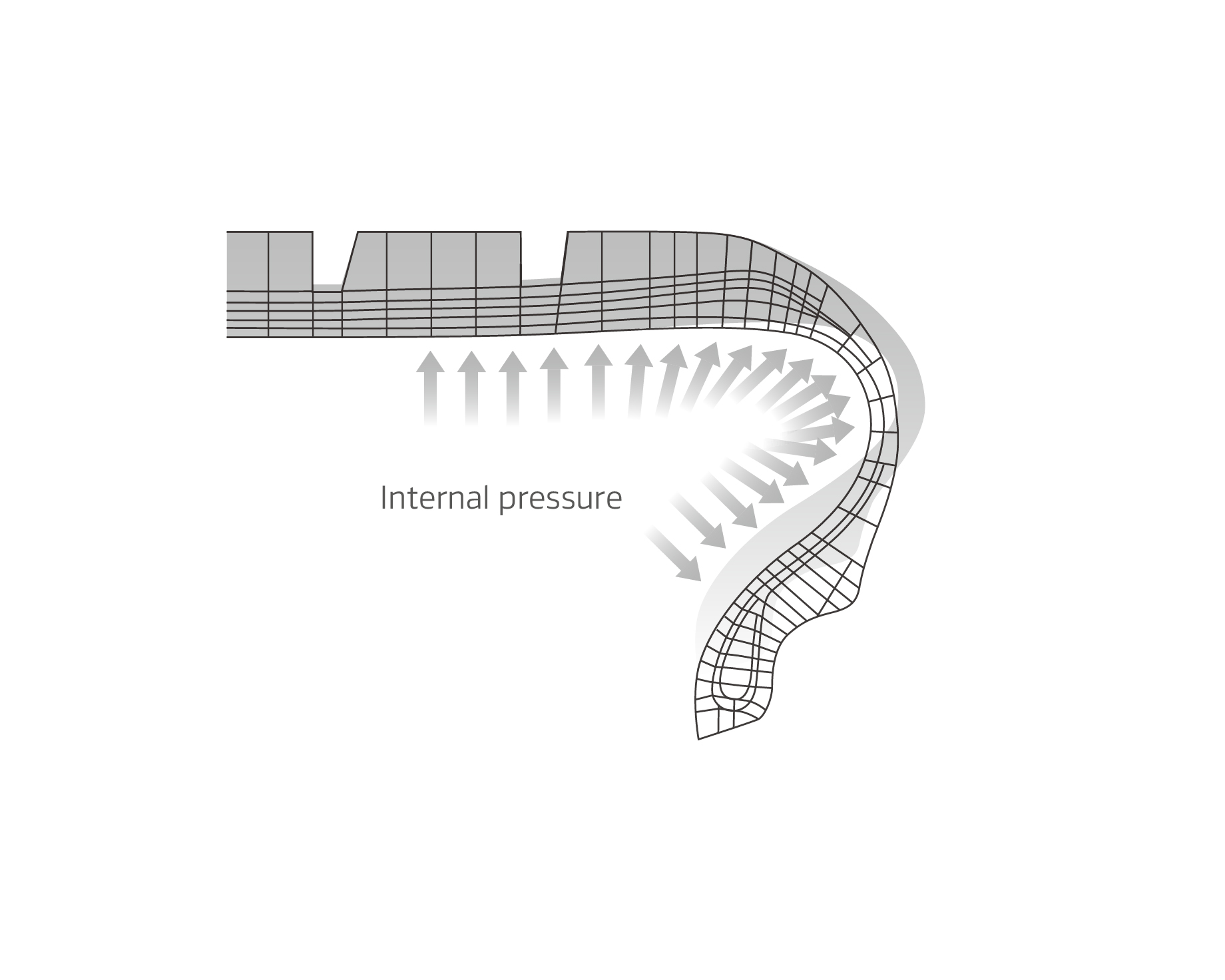

SCCT Technology is designed to reduce profile deformation. If the carcass profile is not kept constant, the internal force on the carcass will be concentrated on a specific point, belt edge or carcass turn up edge. In contrast, SCCT Technology controls the dispersion of internal force for better durability.

Test Results

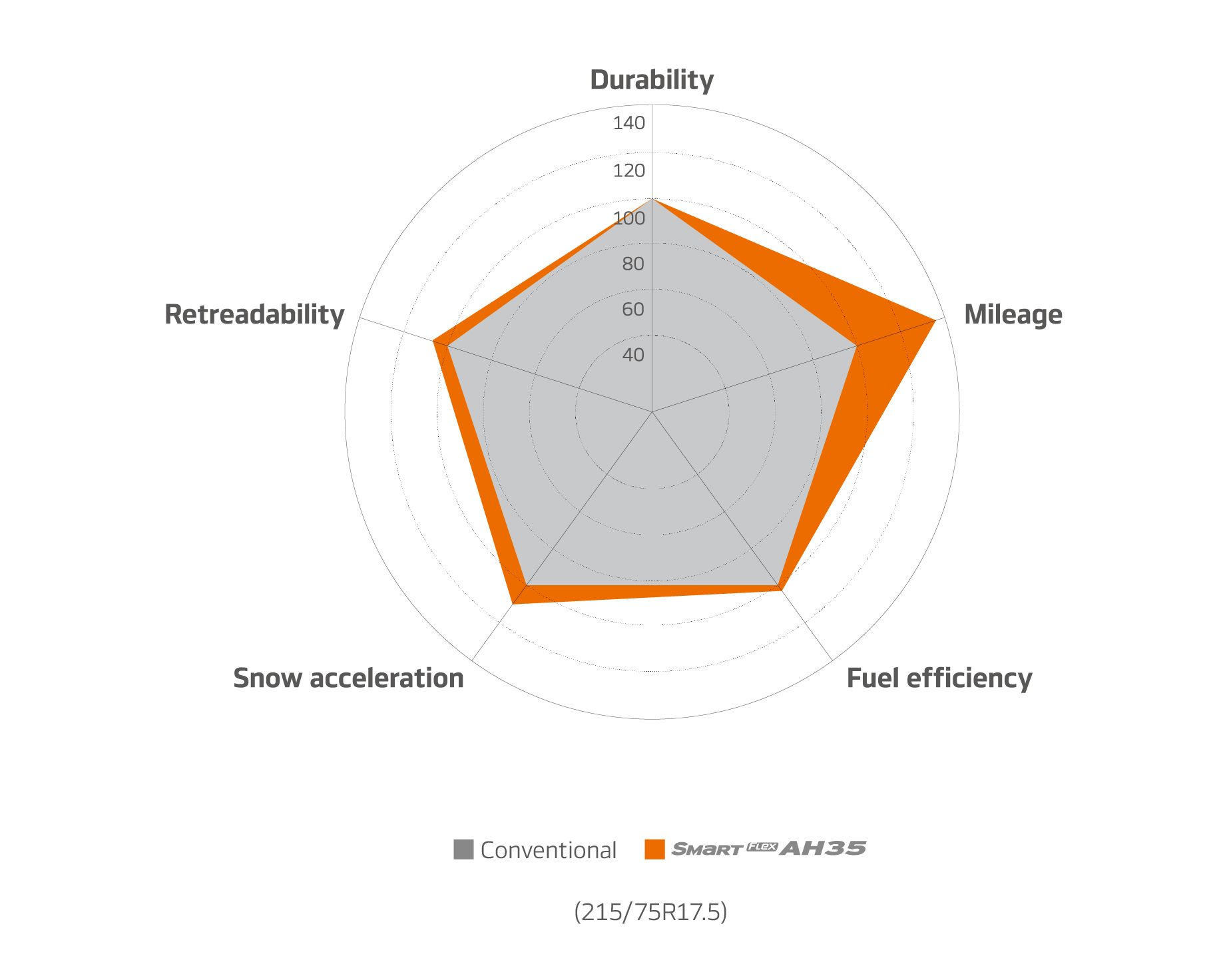

Key Performance

Improved performance compared to its predecessor.

Key Performance

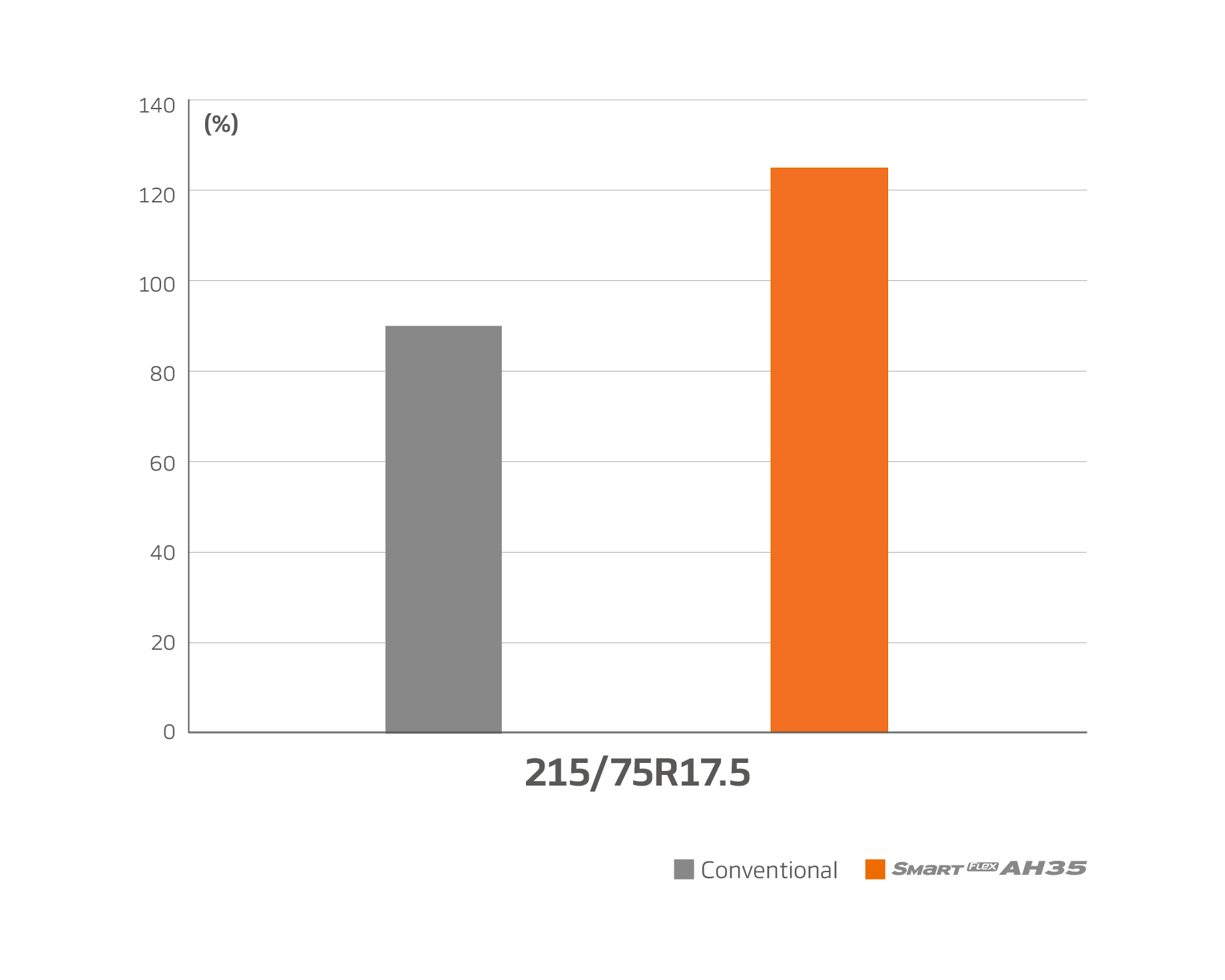

Mileage field test result.

Awards

  • Winner
    Award
    2016 REDDOT
    Publication
    2016

  • Spec

    • 205/75R17.5
      • Tube Type / Tubeless L
      • Ply Rating 12
      • Measuring Rim 6.00X17.5
      • Load Index 124/122M
      • Section Width(mm) 205
      • Section Width(inch) 8.1
      • Tread Width(mm) 174
      • Tread Width(inch) 6.9
      • Tread Depth(mm) 12.1
      • Tread Depth(32nds) 15
      • Static Loaded Radius(mm) 353
      • Static Loaded Radius(inch) 13.9
      • Overall Diameter(mm) 756
      • Overall Diameter(inch) 29.8
      • M+S Y
      • 3PMSF Y
    • 215/75R17.5
      • Tube Type / Tubeless L
      • Ply Rating 12
      • Measuring Rim 6X17.5
      • Load Index 126/124M
      • Section Width(mm) 215
      • Section Width(inch) 8.5
      • Tread Width(mm) 188
      • Tread Width(inch) 7.4
      • Tread Depth(mm) 12.6
      • Tread Depth(32nds) 16
      • Static Loaded Radius(mm) 359
      • Static Loaded Radius(inch) 14.1
      • Overall Diameter(mm) 772
      • Overall Diameter(inch) 30.4
      • M+S Y
      • 3PMSF Y
    • 225/75R17.5
      • Fuel Efficiency C
      • Wet Grip C
      • External Rolling Noise 67
      • Tube Type / Tubeless L
      • Ply Rating 12
      • Measuring Rim 6.75X17.5
      • Load Index 129/127M
      • Section Width(mm) 228
      • Section Width(inch) 9.0
      • Tread Width(mm) 194
      • Tread Width(inch) 7.6
      • Tread Depth(mm) 12.1
      • Tread Depth(32nds) 15
      • Static Loaded Radius(mm) 366
      • Static Loaded Radius(inch) 14.4
      • Overall Diameter(mm) 790
      • Overall Diameter(inch) 31.1
      • M+S Y
      • 3PMSF Y
    • 235/75R17.5
      • Tube Type / Tubeless L
      • Ply Rating 16
      • Measuring Rim 6.75X17.5
      • Load Index 132/130M
      • Section Width(mm) 238
      • Section Width(inch) 9.4
      • Tread Width(mm) 214
      • Tread Width(inch) 8.4
      • Tread Depth(mm) 12.1
      • Tread Depth(32nds) 15
      • Static Loaded Radius(mm) 370
      • Static Loaded Radius(inch) 14.6
      • Overall Diameter(mm) 797
      • Overall Diameter(inch) 31.4
      • M+S Y
      • 3PMSF Y
