Vantra Trailer TH31
The first special trailer tire of exceptional durability and stability
-
Regional Haul
.svg){kind=logo}
Durable & long-lasting even under heavy loads
/m_Concept%20KV(export).jpg)
Durability

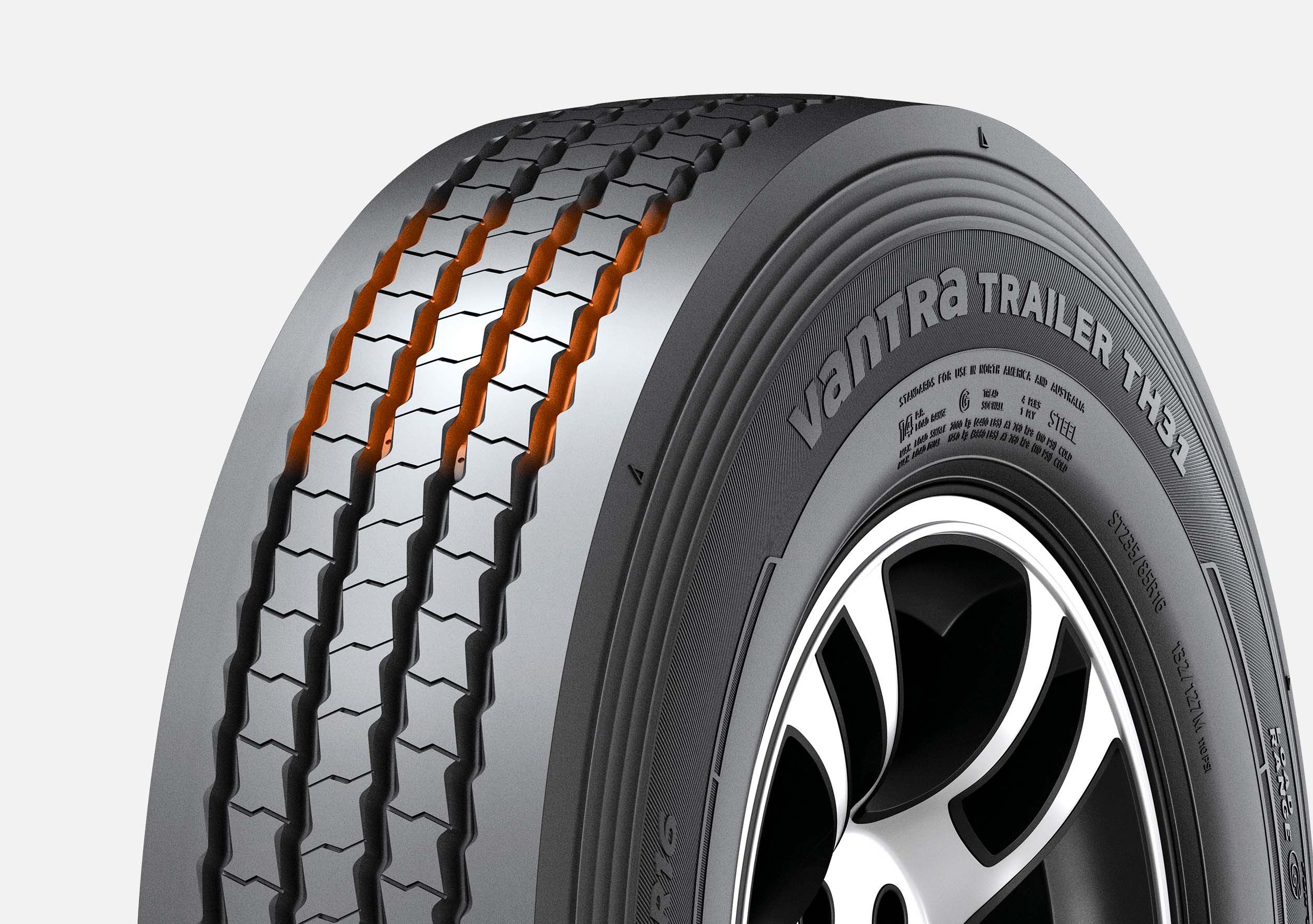

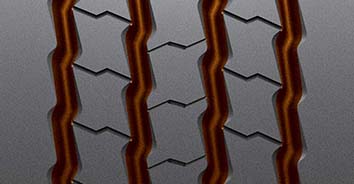

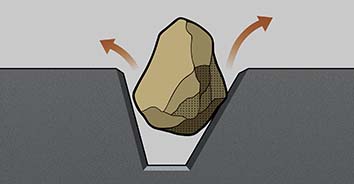

Main zigzag groove
Provides excellent traction and water drainage under various road conditions. Asymmetric groove helps eject stones.
/new-asset/Contents_B_1-1(export).jpg)
/new-asset/Contents_B_1-2(export).jpg)

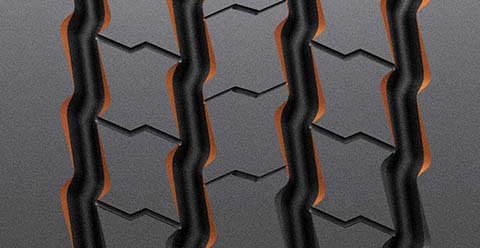

Groove slant design
Slanted groove design helps to prevent chuncking.
/new-asset/Contents_B_2-1(export).jpg)
/new-asset/m_Contents_B_KV-2(export).jpg)
Durability
Performance test result
/new-asset/Contents_G_1-5(export).jpg)
/new-asset/Contents_G_1-4(export).jpg)
Improved Bead
Improved bead structure enabled minimum bead mobility for enhancing durability
-

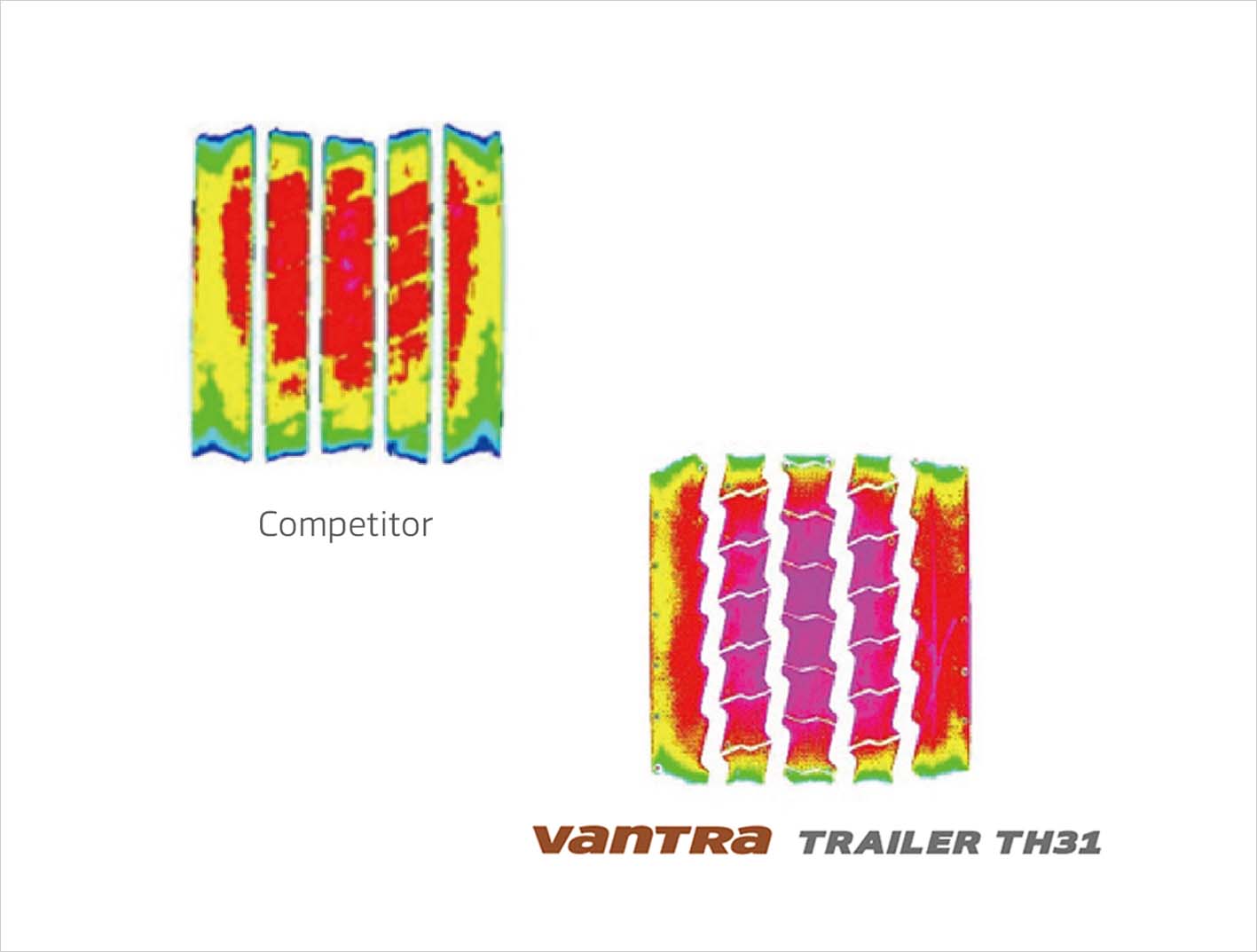

Optimized footprint
Results in more evenly distributed stress, leads to longer tread life and uniform wear under heavy loads.
/Contents_F_1-1(export).jpg)
Results in more evenly distributed stress, leads to longer tread life and uniform wear under heavy loads.
-

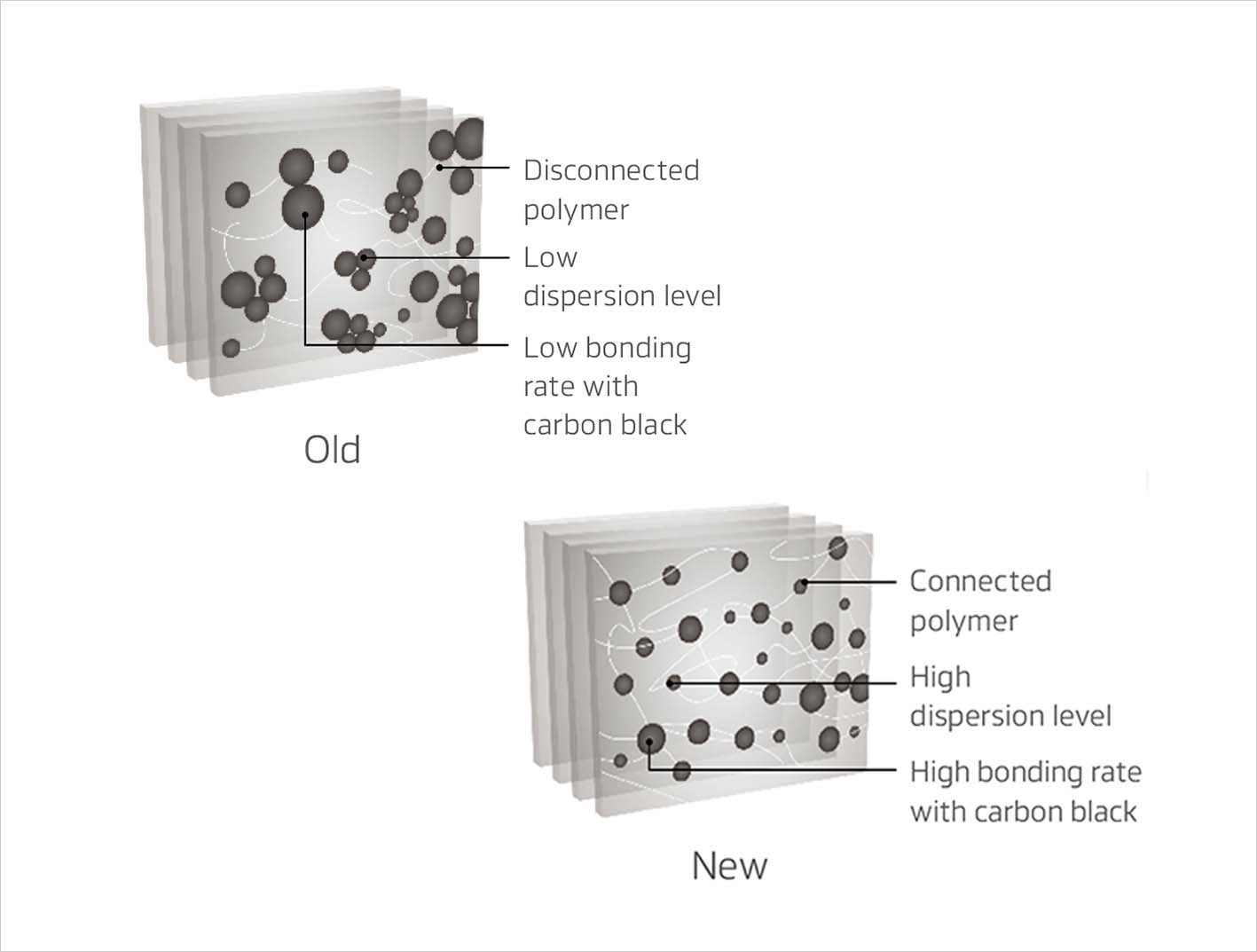

New compound mixing system for enhancing longer life
The new mixing system, Innovation Mixing System, (IMS), minimizes disconnection of polymer chains and oxidation.
/Contents_F_1-2(export).jpg)
The new mixing system, Innovation Mixing System, (IMS), minimizes disconnection of polymer chains and oxidation.
-

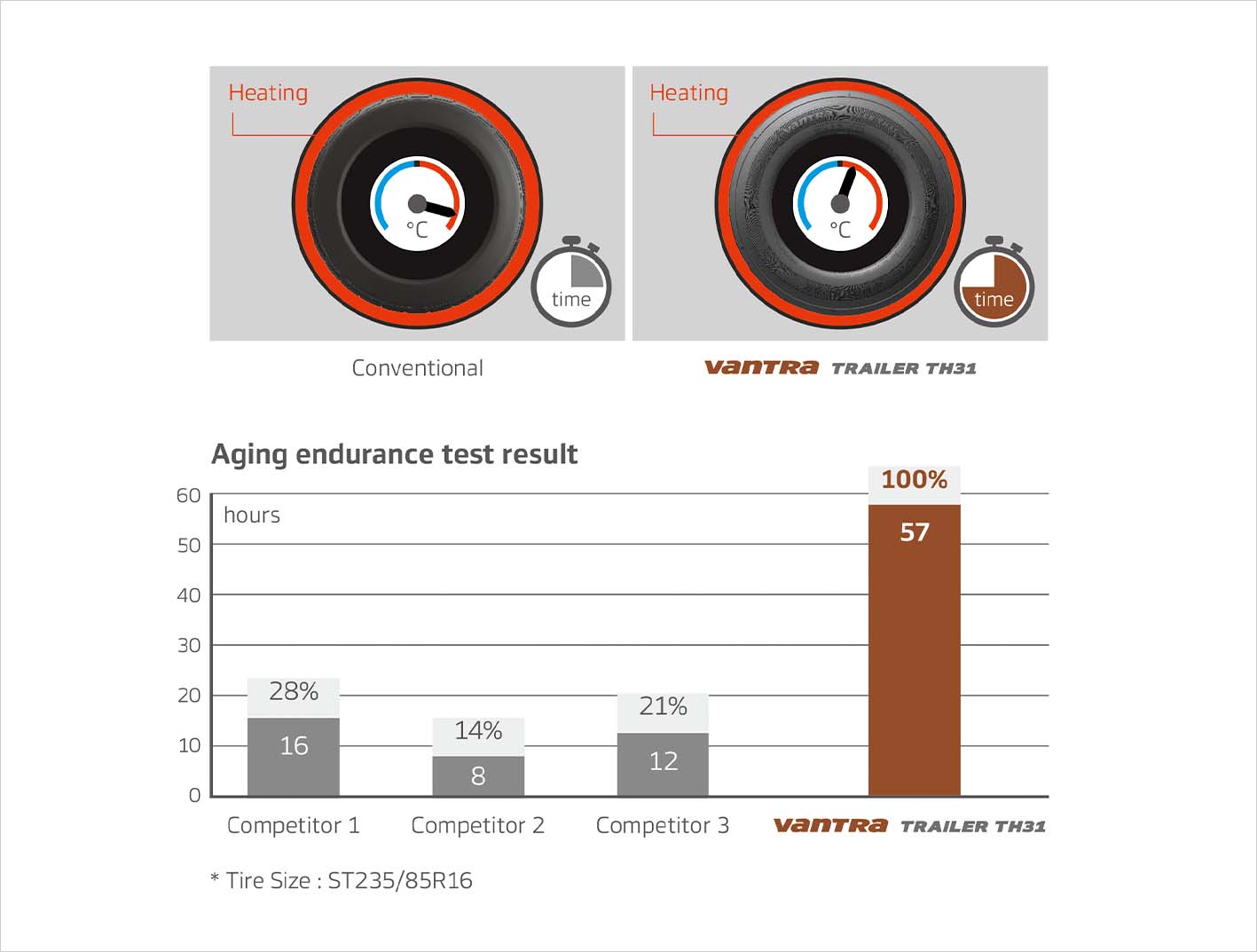

Aging durability
New compound mixing system and steel carcass structure enabled longer life.
/Contents_F_1-3(export)%20(2).jpg)
New compound mixing system and steel carcass structure enabled longer life.
-
Spec
-
ST225/90R16
- Material Code 3003761
- Tube Type / Tubeless L
- Ply Rating 14
- Measuring Rim 6.0X16
- Load Index 129/125M
- Section Width(mm) 218
- Section Width(inch) 8.6
- Tread Width(inch) 6.2
- Tread Depth(mm) 9.7
- Tread Depth(32nds) 12
- Static Loaded Radius(inch) 14.7
- Overall Diameter(mm) 808
- Overall Diameter(inch) 31.8
- Tire Weight(lbs.) 59
- M+S N
- 3PMSF N
-
ST235/80R16
- Material Code 3003760
- Tube Type / Tubeless L
- Ply Rating 14
- Measuring Rim 6.5X16
- Load Index 129/125M
- Section Width(mm) 234
- Section Width(inch) 9.2
- Tread Width(inch) 7.1
- Tread Depth(mm) 9.7
- Tread Depth(32nds) 12
- Static Loaded Radius(inch) 14.3
- Overall Diameter(mm) 782
- Overall Diameter(inch) 30.8
- Tire Weight(lbs.) 60
- M+S N
- 3PMSF N
-
ST235/85R16
- Material Code 3003734
- Tube Type / Tubeless L
- Ply Rating 14
- Measuring Rim 6.5X16
- Load Index 132/127M
- Section Width(mm) 236
- Section Width(inch) 9.3
- Tread Width(inch) 7.1
- Tread Depth(mm) 9.7
- Tread Depth(32nds) 12
- Static Loaded Radius(inch) 14.6
- Overall Diameter(mm) 802
- Overall Diameter(inch) 31.6
- Tire Weight(lbs.) 61
- M+S N
- 3PMSF N
-
