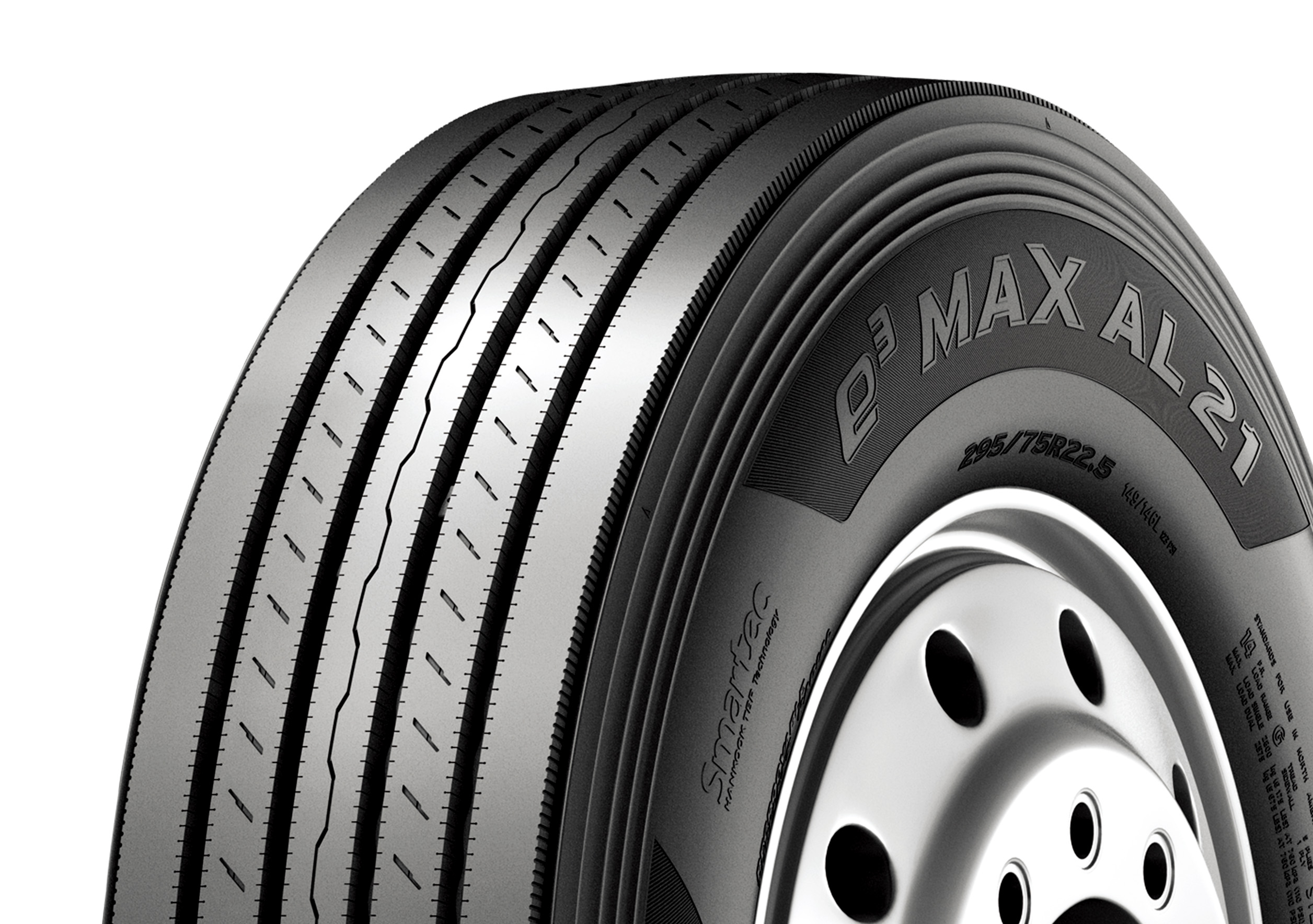

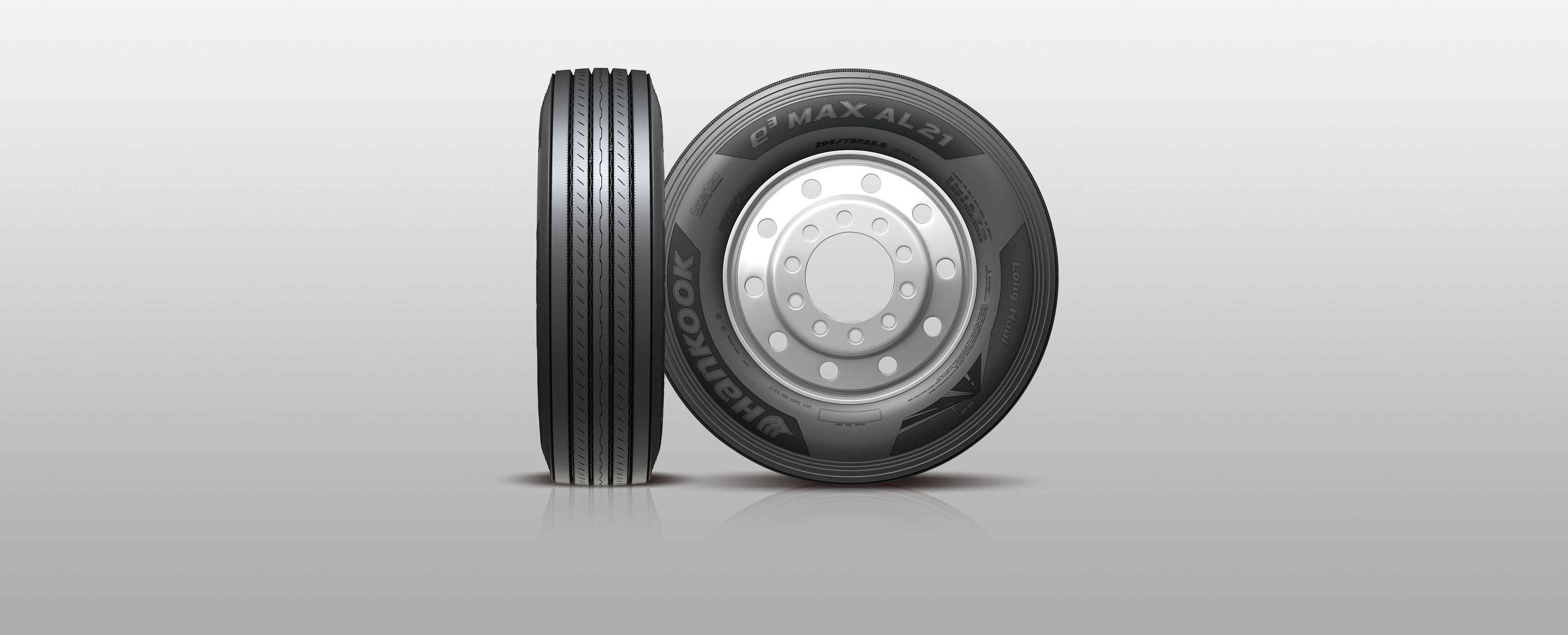

e3 MAX AL21

Long haul steer tire with long mileage and fuel efficiency

Application
  • Long Haul
Tractor/Trailer Recommended
Where to Buy
Where to Buy 0
0Recently viewed products

Long haul steer tire with long mileage and fuel efficiency

Hankook Tire & Technology-Tires-Smart-Smart e3 max-AL21-Long haul steer tire with long mileage and fuel efficiency

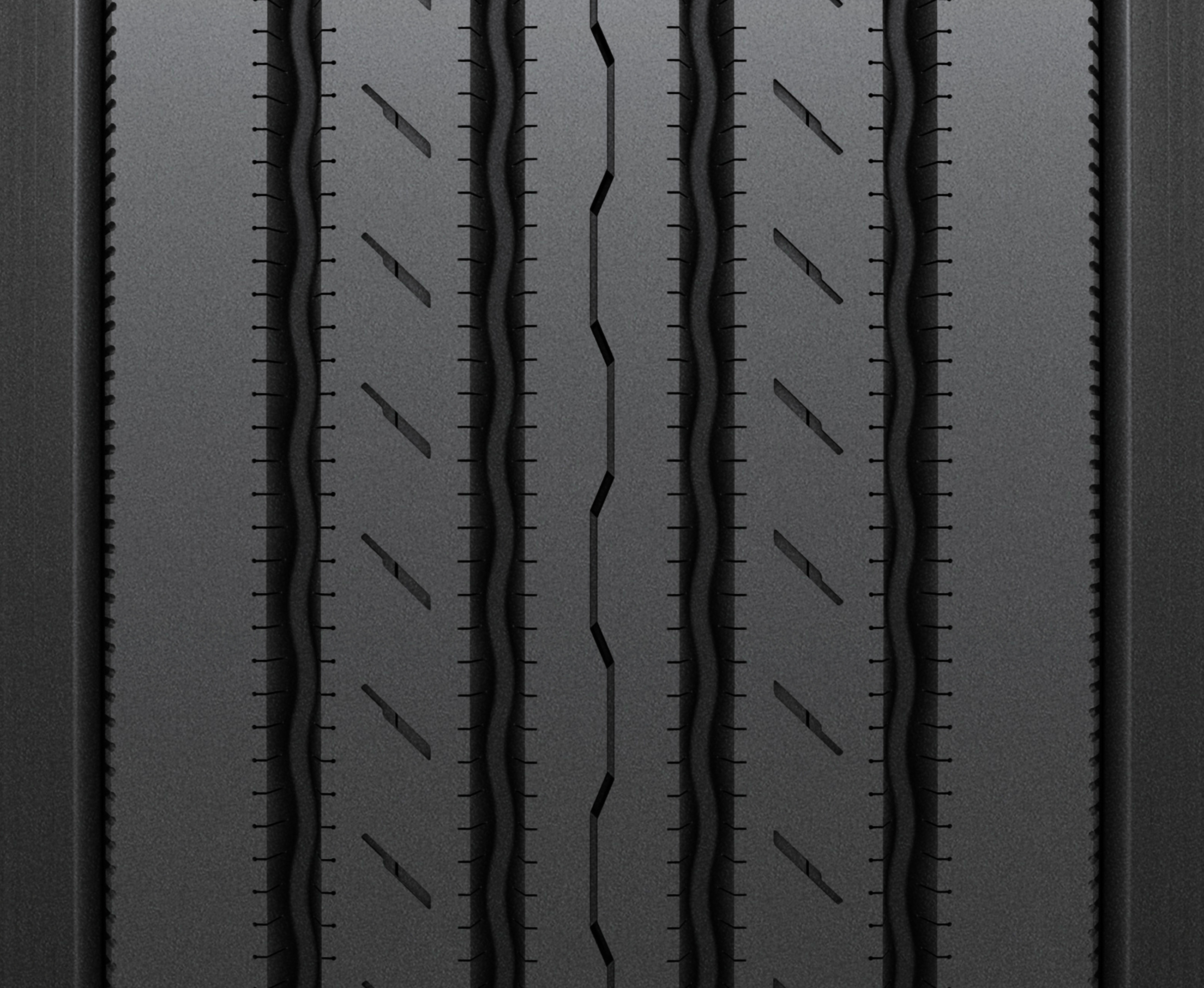

High mileage, fuel efficiency
and good traction with optimized sipe

Lateral & semi-groove sipe

Optimized lateral sipe and semi-groove sipe provides better traction and enhances even wear for superior performance.

  • Lateral sipe
  • Semi-groove sipe

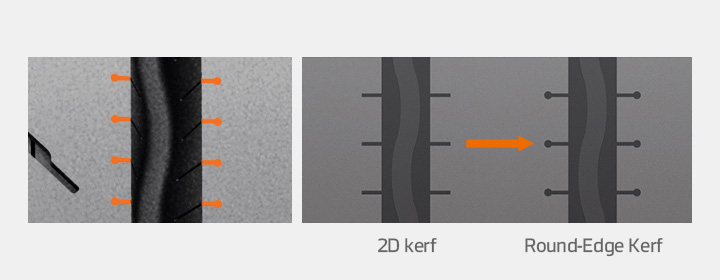

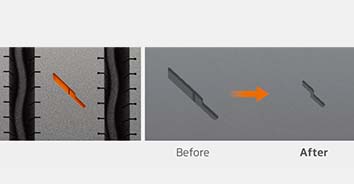

Round-edge sipe

Rounded shape at the edge of the sipe prevents tearing and cracking.

High mileage, fuel efficiency and good traction with optimized sipe

  • Innovative side decoupling groove

    Prevents uneven wear by reducing movement between sidewall and shoulder.

    Prevents uneven wear by reducing movement between sidewall and shoulder.

Best performance with even wear

Improved grip force

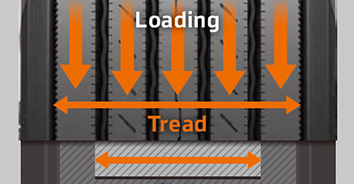

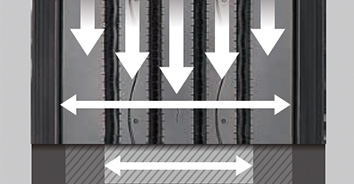

Expanded belt provides equal road grip which results in even wear and better performance.

  • Old
  • AL21

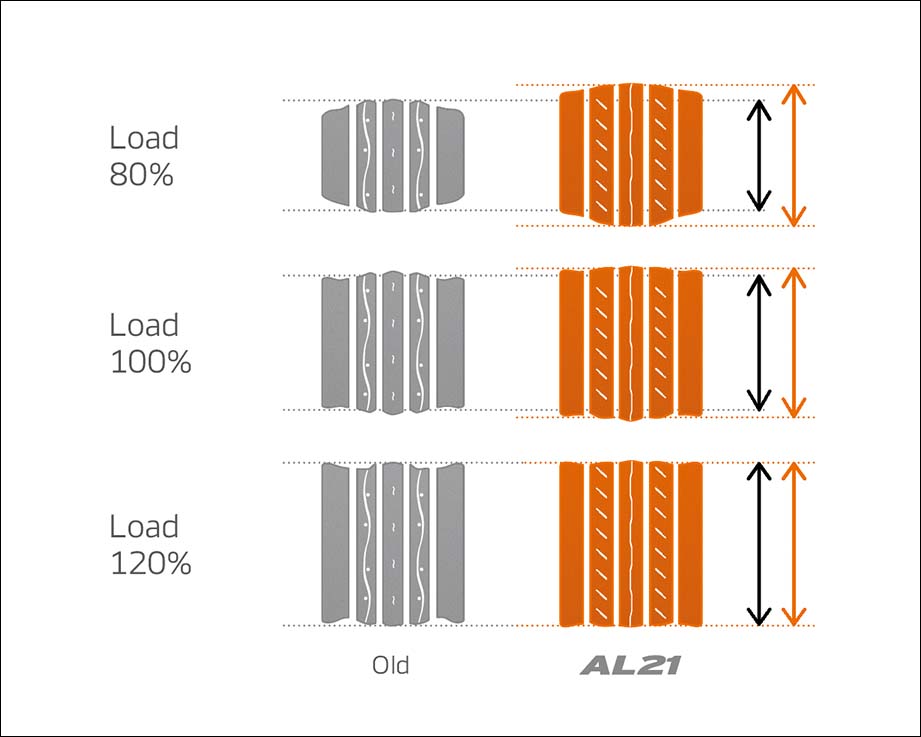

AL21 has a stabilized footprint which provides longer mileage by decreasing uneven wear.

Test Result

Mileage

Mileage improved 23% compared to its predecessor.

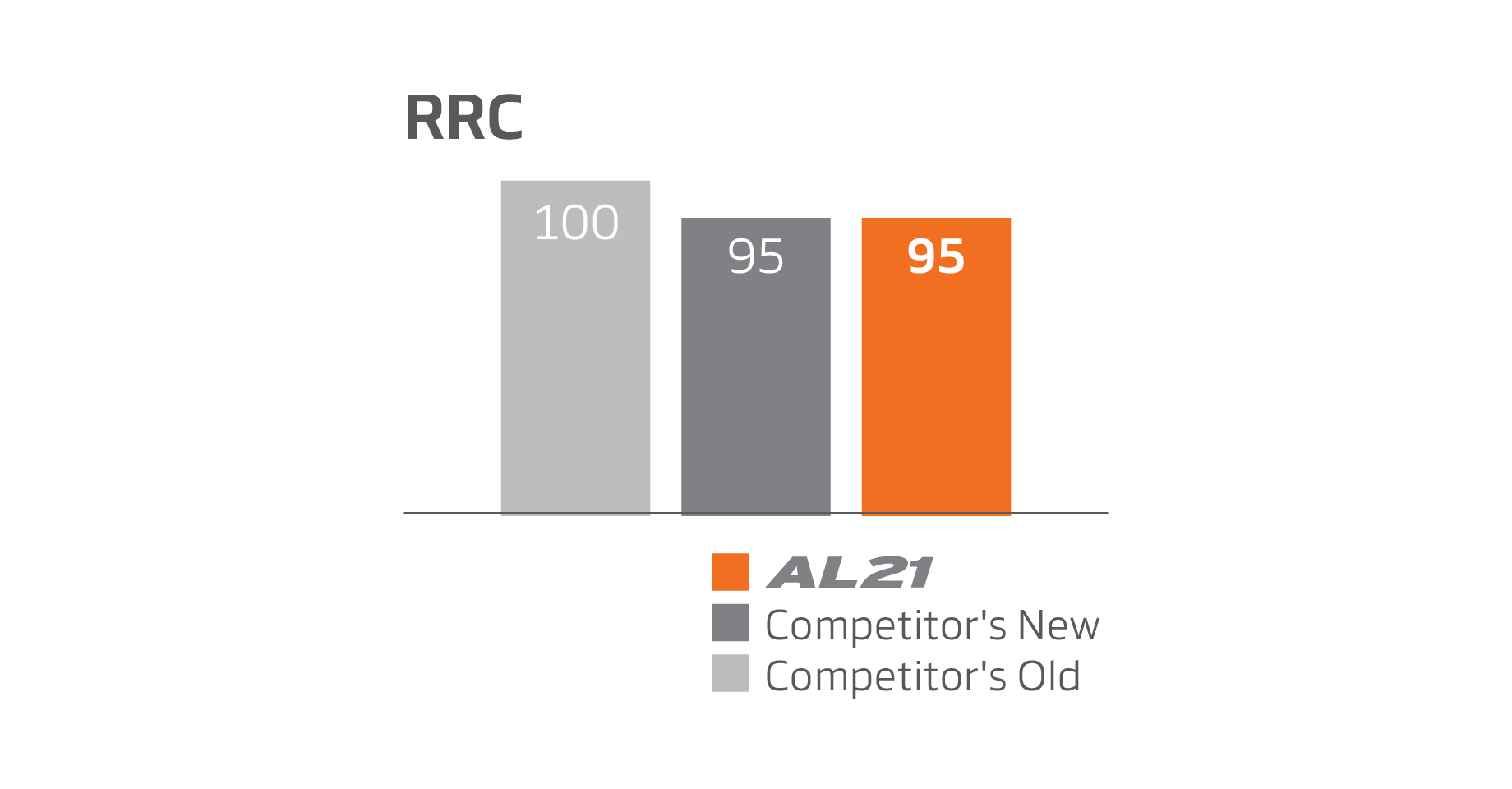

Rolling Resistance

Improved Rolling Resistance compared to its competitors.

  • Spec

    • 11R22.5
      • Material Code 3003160
      • Tube Type / Tubeless L
      • Ply Rating 14
      • Measuring Rim 8.25X22.5
      • Section Width(mm) 283
      • Section Width(inch) 11.1
      • Tread Width(inch) 8.1
      • Tread Depth(mm) 15.0
      • Tread Depth(32nds) 19
      • Static Loaded Radius(inch) 19.3
      • Overall Diameter(mm) 1052
      • Overall Diameter(inch) 41.4
      • Tire Weight(lbs.) 117
      • M+S N
      • 3PMSF N
    • 11R22.5
      • Material Code 3003161
      • Tube Type / Tubeless L
      • Ply Rating 16
      • Measuring Rim 8.25X22.5
      • Section Width(mm) 283
      • Section Width(inch) 11.1
      • Tread Width(inch) 8.1
      • Tread Depth(mm) 15.0
      • Tread Depth(32nds) 19
      • Static Loaded Radius(inch) 19.4
      • Overall Diameter(mm) 1052
      • Overall Diameter(inch) 41.4
      • Tire Weight(lbs.) 117
      • M+S N
      • 3PMSF N
    • 11R24.5
      • Material Code 3003162
      • Tube Type / Tubeless L
      • Ply Rating 14
      • Measuring Rim 8.25X24.5
      • Section Width(mm) 286
      • Section Width(inch) 11.3
      • Tread Width(inch) 8.1
      • Tread Depth(mm) 15.0
      • Tread Depth(32nds) 19
      • Static Loaded Radius(inch) 20.3
      • Overall Diameter(mm) 1105
      • Overall Diameter(inch) 43.5
      • Tire Weight(lbs.) 123
      • M+S N
      • 3PMSF N
    • 295/75R22.5
      • Material Code 3002441
      • Tube Type / Tubeless L
      • Ply Rating 16
      • Measuring Rim 9.0×22.5
      • Load Index 149/146L
      • Section Width(mm) 298
      • Section Width(inch) 11.7
      • Tread Width(inch) 8.5
      • Tread Depth(mm) 15.0
      • Tread Depth(32nds) 19
      • Static Loaded Radius(inch) 18.7
      • Overall Diameter(mm) 1022
      • Overall Diameter(inch) 40.2
      • Tire Weight(lbs.) 112
      • M+S N
      • 3PMSF N
    • 295/75R22.5
      • Material Code 3003158
      • Tube Type / Tubeless L
      • Ply Rating 14
      • Measuring Rim 9.0×22.5
      • Section Width(mm) 298
      • Section Width(inch) 11.7
      • Tread Width(inch) 8.5
      • Tread Depth(mm) 15.0
      • Tread Depth(32nds) 19
      • Static Loaded Radius(inch) 18.7
      • Overall Diameter(mm) 1022
      • Overall Diameter(inch) 40.2
      • Tire Weight(lbs.) 112
      • M+S N
      • 3PMSF N
